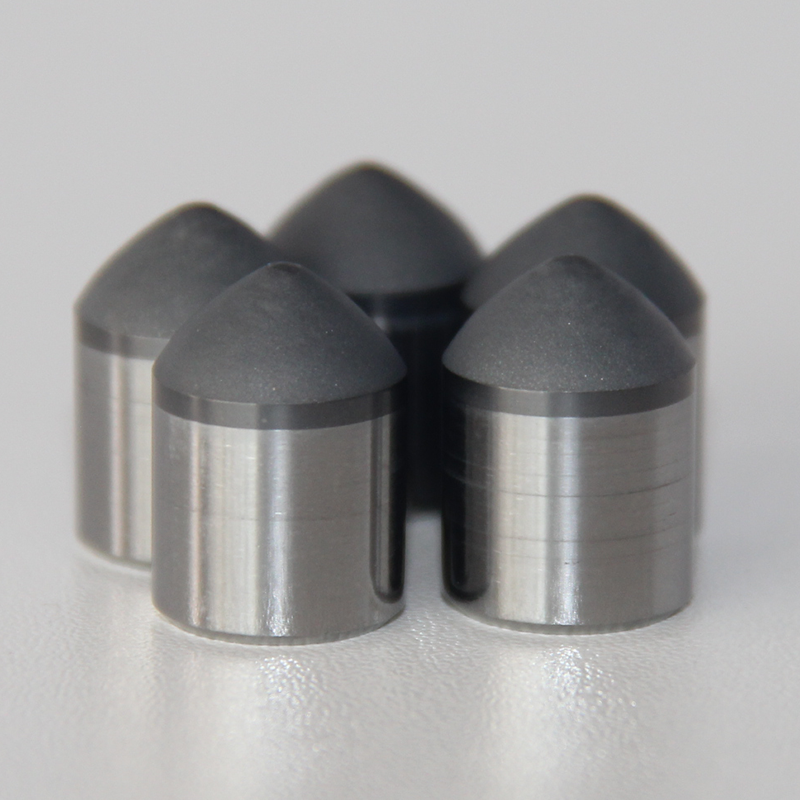

The CB1319 PCD Cutting Water Well Drill Bits Cutter is a premium polycrystalline diamond compact cutter specifically engineered for water well drilling, geothermal drilling, geological exploration, and foundation drilling applications. Designed to deliver superior durability and cutting efficiency, the CB1319 combines an advanced polycrystalline diamond layer with a high-strength tungsten carbide substrate, ensuring exceptional performance in abrasive and challenging formations.Play
Parameter Table
| Model NO. | CB1319 | Length | Standard |
| Type | PDC Cutter/Insert/Button | Material | Tungsten Carbide |
| Usage | Well Drilling, Oilfield,Gas Field,Mining Industry,Construction | Wear Resistance | Super High |
| Thermal Stability | 750℃,800℃,850℃,900℃ | Production Process | Hthp Sintering |
| Diamond Grade | PCD | Substrate Material | Tungsten Carbide |
| Total Height | 5~34 | Tolerance | ±0.02mm |
| Impact Toughness | Excellent | Certification | ISO 9001 |
| Shape | Round | Matched Drill Bit | PDC Drill Bits, Core Bits, Tricone Bits, Drill Pipes (We also offer custom drill bit manufacturing) |
| MOQ | 100PCS | Specification | 1319 |
| Transport Package | Customized, Carton/Wooden Case | Origin | China |
| Trademark | Ninestones | Production Capacity | 10000pieces/Year |
Applicable Strata
The CB1319 PCD Cutter performs exceptionally well in:
- Soft to medium-hard sandstone
- Limestone formations
- Dolomite formations
- Shale formations
- Claystone
- Gravel-bearing formations
- Mixed geological strata
- Abrasive sandstone layers
- Water-bearing formations
- Medium-hard rock formations
Its balanced wear resistance and impact strength make it particularly suitable for continuous drilling operations in water well projects.
Core Product Advantages
High Compressive Strength
The reinforced cutter structure withstands heavy drilling loads and high downhole pressures without compromising cutting performance.
Excellent Impact Resistance
Engineered to resist chipping and fracture caused by vibration and formation changes, ensuring reliable drilling performance.
Outstanding Wear Resistance
The premium polycrystalline diamond layer significantly reduces wear rates, extending cutter and drill bit service life.
Superior Thermal Stability
Advanced HPHT technology enhances heat resistance, allowing stable performance under elevated drilling temperatures.
Improved Drilling Efficiency
Optimized cutting geometry increases rock-breaking efficiency and penetration rates, reducing drilling time.
Longer Service Life
Exceptional durability helps minimize bit replacement frequency and lowers overall drilling costs.
Precise Size Specifications
The CB1319 cutter features a nominal diameter of 13 mm and an overall height of 19 mm. The carefully engineered diamond table thickness and chamfer design provide an excellent balance between aggressiveness and durability. Precision manufacturing ensures consistent dimensional accuracy, while customized sizes and diamond layer configurations are available to meet specific drilling requirements.
Material and Core Technology
Premium Polycrystalline Diamond Layer
Produced from high-purity synthetic diamond particles, the PCD layer delivers exceptional hardness, wear resistance, and cutting performance.
High-Toughness Tungsten Carbide Substrate
The carbide substrate provides superior structural support, shock absorption, and impact resistance during drilling operations.
Advanced HPHT Sintering Technology
The diamond layer and carbide substrate are permanently bonded through advanced HPHT processes, creating excellent interface strength and long-term reliability.
Application Field
Oil & Gas Drilling
Suitable for shallow to medium-deep well operations on land. Works well in tight sandstone, interbedded strata and gravel-bearing formations. High temperature resistance avoids carbonization and delamination, reducing bit replacement and overall drilling cost.
Mining Drilling & Exploration
Ideal for mineral prospecting, tunnel drilling and mine water well projects. Perfect for high-abrasive hard rock such as granite and quartzite. Excellent impact resistance prevents edge chipping, serving longer life in fractured mining formations.
Geological Exploration & Sampling
High dimensional accuracy ensures stable drilling and regular borehole. Guarantees complete formation core sampling, fully meeting high-precision geological survey and resource exploration requirements.
Water Well & Infrastructure Engineering
Widely used in deep water wells, pile foundation drilling and construction projects. Efficient penetration in common rock layers, low wear and stable performance for long-time continuous site operation.
Universal Bit Matching
Compatible with mainstream PDC bits, core bits and drilling tools with good interchangeability. Custom sizes and chamfers are available to meet non-standard matching demands for different projects.
Customized Service
Ninestones Superabrasives provides comprehensive OEM and ODM solutions:
- Customized cutter dimensions
- Diamond layer thickness optimization
- Special chamfer designs
- Enhanced wear-resistant grades
- High-impact resistance formulations
- Laser marking services
- Customized packaging
- Private-label manufacturing
Our technical team can recommend the most suitable cutter design based on your drilling conditions and project requirements.
| Product Model | Diameter | Height | Radius of Dome | Exposed Height |
| CB1319 | 13.440 | 19.050 | 2 | 6.5 |
| CB1418 | 14.350 | 17.530 | 2.5 | 6.9 |
| CB1421 | 14.375 | 21.000 | 2.5 | 6.9 |
| CB1526 | 15.000 | 26.000 | 2.5 | 10.0 |
| CB1621 | 15.880 | 21.000 | 2.0 | 8.3 |
| CB1624 | 15.880 | 24.000 | 2.5 | 8.3 |
| CB1625 | 15.880 | 25.000 | 2.5 | 8.3 |
| CB1629 | 16.000 | 29.000 | 2.5 | 11.0 |
Customer Reviews
Mark Wilson | Oilfield Drilling Project Manager
We have been using their 16mm PDC cutters for a long time. They perform steadily in hard formations with much better wear resistance than other brands. Cutter chipping is greatly reduced, which effectively cuts down our overall drilling cost. Highly reliable for long-term cooperation.
Carlos Rodriguez | Mining Drilling Engineer
Our working conditions are tough with granite and fractured formations. These PDC cutters have excellent impact resistance and longer service life. The dimension accuracy is perfect, fits our drill bits very well without repeated adjustment.
David Brown | Infrastructure & Water Well Contractor
Great customization service for non-standard sizes and special chamfers. Delivery is always on time. The cutters hold up well under continuous high-intensity site operation, fast penetration and low consumption, fully matching our construction schedule.
Packaging
To ensure safe transportation and storage, CB1319 cutters are packaged with:
- Individual protective plastic trays
- Shock-resistant foam protection
- Moisture-proof vacuum-sealed bags
- Export-standard corrugated cartons
- Optional fumigation-free wooden crates for bulk shipments
Customized packaging and OEM branding options are available upon request.
Delivery
Sample and bulk orders are acceptable. We support express, air freight and sea freight. Sufficient production capacity ensures stable lead time, safe and on-time delivery worldwide.
FAQ
Q: What is the CB1319 cutter mainly used for?
A: The CB1319 is primarily designed for water well drilling, geothermal drilling, geological exploration, and foundation drilling applications.
Q: Is the CB1319 suitable for abrasive formations?
A: Yes. The premium PCD layer provides excellent wear resistance, making it highly effective in abrasive sandstone and mixed geological formations.
Q: Can this cutter withstand impact loads?
A: Absolutely. The optimized diamond-carbide structure offers excellent impact resistance and minimizes the risk of cutter damage.
Q: Do you provide customized specifications?
A: Yes. We offer customized dimensions, diamond table thicknesses, chamfer configurations, and performance grades.
Q: How does the CB1319 improve drilling performance?
A: Its advanced cutting structure improves penetration rates, reduces wear, extends bit life, and lowers drilling costs.
