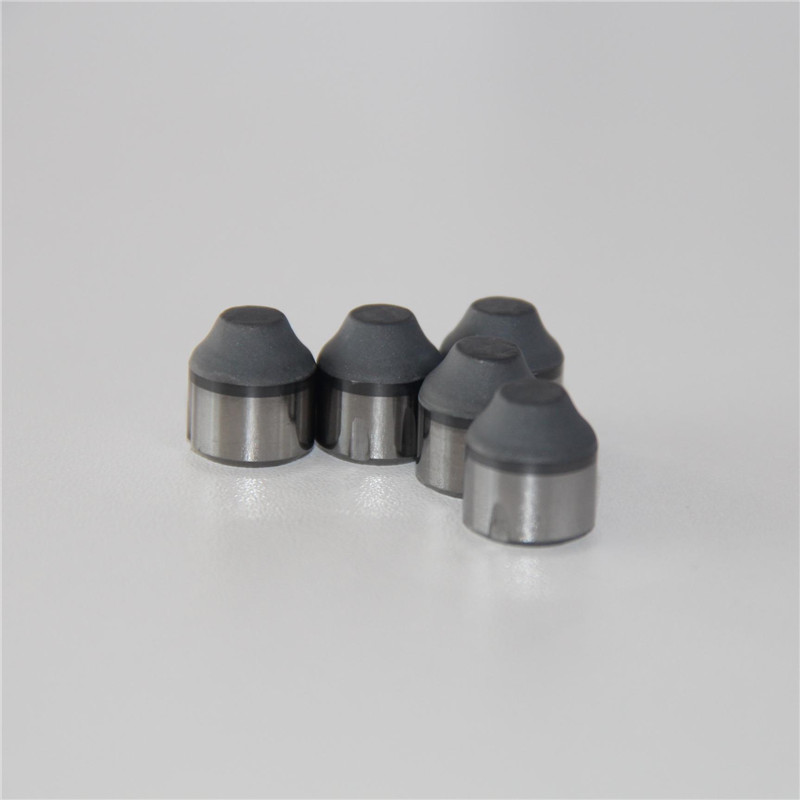

DH1216 Truncated Diamond PDC Cutter is a premium polycrystalline diamond compact cutter specifically designed for high-impact and highly abrasive cutting applications. Featuring a truncated diamond table structure, this cutter combines the exceptional wear resistance of PDC technology with enhanced impact strength, making it ideal for mining picks, road milling tools, foundation drilling tools, tunneling equipment, and coal cutting machinery.Play
Parameter Table
| Model NO. | DH1216 | Length | Standard |
| Type | PDC Cutter/Insert/Button | Material | Tungsten Carbide |
| Usage | Well Drilling, Oilfield,Gas Field,Mining Industry,Construction | Wear Resistance | Super High |
| Thermal Stability | 750℃,800℃,850℃,900℃ | Production Process | Hthp Sintering |
| Diamond Grade | PCD | Substrate Material | Tungsten Carbide |
| Total Height | 5~34 | Tolerance | ±0.02mm |
| Impact Toughness | Excellent | Certification | ISO 9001 |
| Shape | Round | Matched Drill Bit | PDC Drill Bits, Core Bits, Tricone Bits, Drill Pipes (We also offer custom drill bit manufacturing) |
| MOQ | 100PCS | Specification | 1216 |
| Transport Package | Customized, Carton/Wooden Case | Origin | China |
| Trademark | Ninestones | Production Capacity | 10000pieces/Year |
Applicable Strata
DH1216 Truncated PDC Cutter is suitable for various medium-hard to hard formations, including:
- Coal Seams
- Sandstone
- Limestone
- Mudstone
- Shale
- Dolomite
- Conglomerate
- Abrasive Rock Formations
- Weathered Granite
- Mixed Geological Formations
Especially suitable for applications involving repeated impact loads and abrasive wear.
Core Product Advantages
Superior Compressive Strength
The high-strength tungsten carbide substrate provides excellent load-bearing capability, ensuring reliable performance under heavy cutting forces.
Exceptional Impact Resistance
The truncated structure reduces stress concentration and significantly improves resistance to cracking and edge chipping during impact operations.
Outstanding Wear Resistance
The premium diamond layer offers superior abrasion resistance, extending cutter life in highly abrasive working environments.
Excellent High-Temperature Stability
Advanced thermal-resistant technology enables the cutter to maintain cutting performance under elevated operating temperatures.
Longer Tool Service Life
Optimized diamond-to-carbide bonding technology minimizes premature failure and maximizes operational lifespan.
Improved Cutting Efficiency
The engineered cutting geometry enhances rock-breaking performance, reducing energy consumption and increasing productivity.
Precise Size Specifications
DH1216 features a standard diameter of 12 mm and an overall height of 16 mm. The truncated diamond table is designed to balance wear resistance and impact toughness, providing optimal performance in mining and engineering applications. Customized dimensions, diamond layer thicknesses, truncation heights, and chamfer configurations are available according to customer requirements.
Material and Core Technology
Premium Polycrystalline Diamond Layer
Manufactured using high-purity synthetic diamond powder to achieve exceptional hardness, wear resistance, and cutting performance.
High-Strength Tungsten Carbide Substrate
Utilizes premium tungsten carbide material to provide excellent toughness, compressive strength, and impact resistance.
Advanced HPHT Sintering Technology
Employs industry-leading High Pressure High Temperature technology to create a strong metallurgical bond between the diamond layer and carbide substrate for superior durability and thermal stability.
Application Field
Oil & Gas Drilling
Suitable for shallow to medium-deep well operations on land. Works well in tight sandstone, interbedded strata and gravel-bearing formations. High temperature resistance avoids carbonization and delamination, reducing bit replacement and overall drilling cost.
Mining Drilling & Exploration
Ideal for mineral prospecting, tunnel drilling and mine water well projects. Perfect for high-abrasive hard rock such as granite and quartzite. Excellent impact resistance prevents edge chipping, serving longer life in fractured mining formations.
Geological Exploration & Sampling
High dimensional accuracy ensures stable drilling and regular borehole. Guarantees complete formation core sampling, fully meeting high-precision geological survey and resource exploration requirements.
Water Well & Infrastructure Engineering
Widely used in deep water wells, pile foundation drilling and construction projects. Efficient penetration in common rock layers, low wear and stable performance for long-time continuous site operation.
Customized Service
As a professional PDC cutter manufacturer, we provide comprehensive customization solutions:
- Customized Diameter and Height
- Diamond Layer Thickness Adjustment
- Truncation Height Customization
- Special Shape PDC Cutters
- Laser Logo Marking
- OEM Manufacturing Services
- Customized Packaging Solutions
- Application-Oriented Design Support
Our engineering team can develop tailored cutter solutions to meet specific geological and operational requirements.
| Cutter Model | Diameter/mm | Total Height/mm | Height of Diamond Layer | Chamfer of Diamond Layer |
| DH1214 | 12.500 | 14.000 | 8.5 | 6 |
| DH1216 | 12.700 | 16.000 | 8.50 | 6.0 |
Customer Reviews
Mark Wilson | Oilfield Drilling Project Manager
We have been using their 16mm PDC cutters for a long time. They perform steadily in hard formations with much better wear resistance than other brands. Cutter chipping is greatly reduced, which effectively cuts down our overall drilling cost. Highly reliable for long-term cooperation.
Carlos Rodriguez | Mining Drilling Engineer
Our working conditions are tough with granite and fractured formations. These PDC cutters have excellent impact resistance and longer service life. The dimension accuracy is perfect, fits our drill bits very well without repeated adjustment.
David Brown | Infrastructure & Water Well Contractor
Great customization service for non-standard sizes and special chamfers. Delivery is always on time. The cutters hold up well under continuous high-intensity site operation, fast penetration and low consumption, fully matching our construction schedule.
Packaging
To ensure maximum protection during transportation and storage, DH1216 cutters are packaged using:
- Individual Protective Plastic Cases
- Shockproof Foam Inserts
- Moisture-Proof Packaging
- Export Standard Cartons
- Wooden Crates Available for Bulk Orders
- Customized OEM Packaging Services
All packaging complies with international export standards.
Delivery
Sample and bulk orders are acceptable. We support express, air freight and sea freight. Sufficient production capacity ensures stable lead time, safe and on-time delivery worldwide.
FAQ
Q: What is the advantage of a truncated PDC cutter?
A: The truncated design improves impact resistance, reduces edge chipping, and extends service life in high-impact applications.
Q: What industries commonly use DH1216 cutters?
A: DH1216 is widely used in coal mining, road milling, foundation drilling, tunneling, and rock-cutting industries.
Q: Can the truncation height be customized?
A: Yes. We can customize the truncation height, diamond layer thickness, cutter dimensions, and chamfer design according to customer requirements.
Q: Which countries do you export to?
A: Our PDC cutters are exported to North America, Europe, Australia, Southeast Asia, the Middle East, South America, and Africa.
