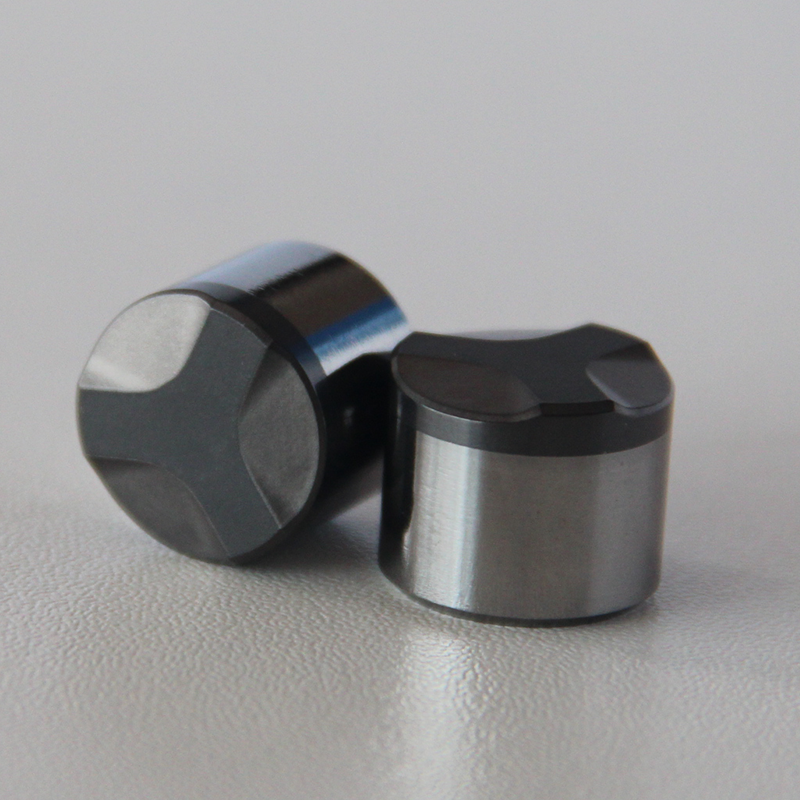

The MT1613A PDC Cutter is a premium polycrystalline diamond compact cutter specifically designed for mining drill bits, anchor drilling tools, geological exploration equipment, and foundation engineering applications. Featuring an optimized cutting structure and reinforced diamond layer, the MT1613A delivers exceptional wear resistance, superior impact strength, and reliable cutting performance in demanding drilling environments.Play
Parameter Table
| Model NO. | MT1613A | Length | Standard |
| Type | PDC Cutter/Insert/Button | Material | Tungsten Carbide |
| Usage | Well Drilling, Oilfield,Gas Field,Mining Industry,Construction | Wear Resistance | Super High |
| Thermal Stability | 750℃,800℃,850℃,900℃ | Production Process | Hthp Sintering |
| Diamond Grade | PCD | Substrate Material | Tungsten Carbide |
| Total Height | 5~34 | Tolerance | ±0.02mm |
| Impact Toughness | Excellent | Certification | ISO 9001 |
| Shape | Round | Matched Drill Bit | PDC Drill Bits, Core Bits, Tricone Bits, Drill Pipes (We also offer custom drill bit manufacturing) |
| MOQ | 100PCS | Specification | MT1613A |
| Transport Package | Customized, Carton/Wooden Case | Origin | China |
| Trademark | Ninestones | Production Capacity | 10000pieces/Year |
Applicable Strata
The MT1613A PDC Cutter performs exceptionally well in:
- Medium-hard sandstone
- Hard sandstone
- Limestone
- Dolomite
- Coal seams
- Shale formations
- Quartz-bearing formations
- Abrasive mixed strata
- Fractured geological formations
- Medium-hard to hard rock formations
Its enhanced impact resistance makes it particularly suitable for formations where drilling tools are exposed to repeated shock loads and abrasive wear.
Core Product Advantages
Exceptional Compressive Strength
The reinforced cutter structure withstands high drilling pressures and maintains cutting integrity under heavy loading conditions.
Outstanding Impact Resistance
Designed for mining and anchoring applications, the MT1613A effectively resists chipping, cracking, and breakage caused by continuous impact and vibration.
Superior Wear Resistance
The premium polycrystalline diamond layer provides outstanding abrasion resistance, significantly extending cutter service life in abrasive formations.
Excellent Thermal Stability
Advanced HPHT manufacturing technology enhances heat resistance and ensures stable performance at elevated drilling temperatures.
High Drilling Efficiency
The optimized cutting geometry improves rock fragmentation efficiency, increases penetration rates, and reduces drilling energy consumption.
Extended Tool Life
Lower wear rates and enhanced structural durability help reduce maintenance requirements and prolong drill bit lifespan.
Precise Size Specifications
The MT1613A cutter features a nominal diameter of 16 mm and an overall height of 13 mm. The cutter is engineered with optimized diamond table thickness and precision manufacturing tolerances to provide an ideal balance between cutting efficiency, impact resistance, and wear performance. Customized dimensions and diamond layer configurations are available upon request.
Material and Core Technology
Premium Polycrystalline Diamond Layer
The diamond table is manufactured using selected synthetic diamond powders sintered under ultra-high pressure and temperature, resulting in exceptional hardness and wear resistance.
High-Toughness Tungsten Carbide Substrate
The carbide substrate provides excellent mechanical support, impact resistance, and structural stability during aggressive drilling operations.
Advanced HPHT Bonding Technology
Precision-controlled HPHT sintering creates a strong diamond-carbide interface, improving thermal stability, bonding strength, and overall cutter reliability.
Application Field
Oil & Gas Drilling
Suitable for shallow to medium-deep well operations on land. Works well in tight sandstone, interbedded strata and gravel-bearing formations. High temperature resistance avoids carbonization and delamination, reducing bit replacement and overall drilling cost.
Mining Drilling & Exploration
Ideal for mineral prospecting, tunnel drilling and mine water well projects. Perfect for high-abrasive hard rock such as granite and quartzite. Excellent impact resistance prevents edge chipping, serving longer life in fractured mining formations.
Geological Exploration & Sampling
High dimensional accuracy ensures stable drilling and regular borehole. Guarantees complete formation core sampling, fully meeting high-precision geological survey and resource exploration requirements.
Water Well & Infrastructure Engineering
Widely used in deep water wells, pile foundation drilling and construction projects. Efficient penetration in common rock layers, low wear and stable performance for long-time continuous site operation.
Universal Bit Matching
Compatible with mainstream PDC bits, core bits and drilling tools with good interchangeability. Custom sizes and chamfers are available to meet non-standard matching demands for different projects.
Customized Service
Ninestones Superabrasives offers complete OEM and ODM manufacturing solutions:
- Customized cutter dimensions
- Diamond table thickness adjustment
- Enhanced wear-resistant grades
- High-impact resistance formulations
- Special chamfer designs
- Laser marking services
- Private labeling and packaging
- Application-specific cutter optimization
Our experienced engineering team can develop customized cutter solutions tailored to your drilling conditions and project requirements.
| Cutter Model | Diameter/mm | Total Height/mm | Height of Diamond Layer | Chamfer of Diamond Layer |
| MT1613 | 15.880 | 13.200 | 2.5 | 0.3 |
| MT1613A | 15.880 | 13.200 | 2.8 | 0.3 |
Customer Reviews
Mark Wilson | Oilfield Drilling Project Manager
We have been using their 16mm PDC cutters for a long time. They perform steadily in hard formations with much better wear resistance than other brands. Cutter chipping is greatly reduced, which effectively cuts down our overall drilling cost. Highly reliable for long-term cooperation.
Carlos Rodriguez | Mining Drilling Engineer
Our working conditions are tough with granite and fractured formations. These PDC cutters have excellent impact resistance and longer service life. The dimension accuracy is perfect, fits our drill bits very well without repeated adjustment.
David Brown | Infrastructure & Water Well Contractor
Great customization service for non-standard sizes and special chamfers. Delivery is always on time. The cutters hold up well under continuous high-intensity site operation, fast penetration and low consumption, fully matching our construction schedule.
Packaging
To ensure safe transportation and storage, MT1613A cutters are packaged using:
- Individual protective plastic trays
- Anti-shock foam protection
- Vacuum-sealed moisture-proof bags
- Export-standard corrugated cartons
- Optional fumigation-free wooden crates for large-volume orders
Customized packaging and OEM branding services are available
Delivery
Sample and bulk orders are acceptable. We support express, air freight and sea freight. Sufficient production capacity ensures stable lead time, safe and on-time delivery worldwide.
FAQ
Q: What is the MT1613A primarily used for?
A: The MT1613A is mainly used in mining drill bits, anchor drilling systems, geological exploration tools, and foundation engineering applications.
Q: What formations are suitable for this cutter?
A: It is suitable for sandstone, limestone, shale, coal seams, quartz-bearing formations, and other medium-hard to hard rock formations.
Q: Can MT1613A be customized?
A: Yes. Ninestones provides full OEM and ODM services, including customized dimensions, diamond layer thicknesses, chamfer designs, and performance grades.
Q:How does the MT1613A improve drilling performance?
A: Its optimized cutting structure improves rock-breaking efficiency, reduces wear, increases penetration rates, and extends drill bit service life.
Q: Is the cutter suitable for abrasive formations?
A: Absolutely. The premium diamond layer offers excellent wear resistance in highly abrasive drilling environments.
