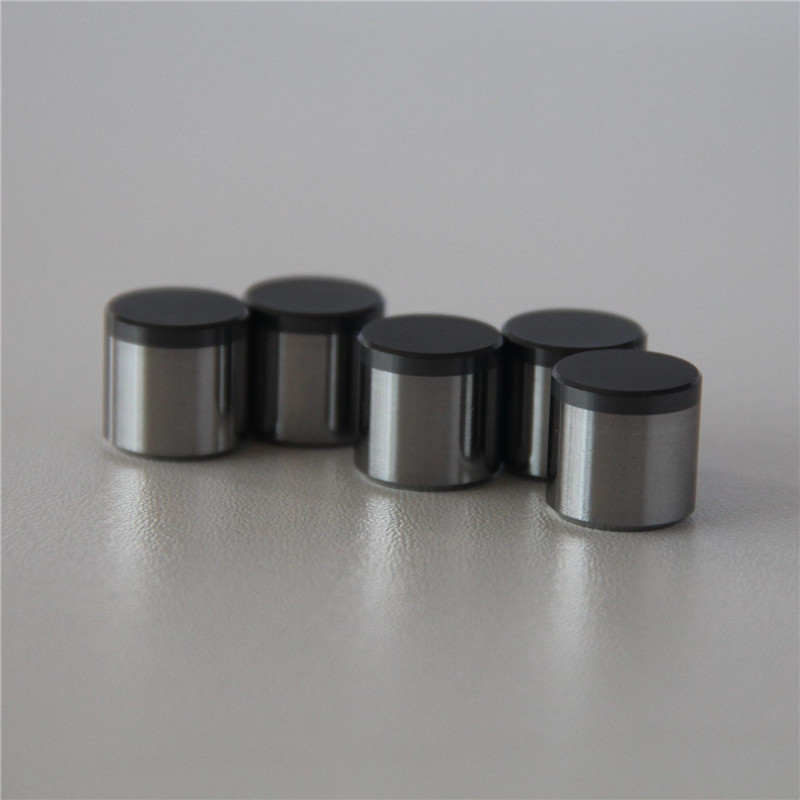

The 1313 PDC cutter is a compact, cost‑effective polycrystalline diamond compact, manufactured via HTHP sintering with a tungsten carbide substrate. Standard size: diameter 13.44 mm, total height 13.0 mm, diamond layer 2.0 mm. It balances high hardness, toughness and thermal stability, ideal for medium formations and directional drilling.Play
Parameter Table
| Model NO. | S1313 | Length | Standard |
| Type | PDC Cutter/Insert/Button | Material | Tungsten Carbide |
| Usage | Well Drilling, Oilfield,Gas Field,Mining Industry,Construction | Wear Resistance | Super High |
| Thermal Stability | 750℃,800℃,850℃,900℃ | Production Process | Hthp Sintering |
| Diamond Grade | PCD | Substrate Material | Tungsten Carbide |
| Total Height | 5~34 | Tolerance | ±0.02mm |
| Impact Toughness | Excellent | Certification | ISO 9001 |
| Shape | Round | Matched Drill Bit | PDC Drill Bits, Core Bits, Tricone Bits, Drill Pipes (We also offer custom drill bit manufacturing) |
| MOQ | 100PCS | Specification | 1313 |
| Transport Package | Customized, Carton/Wooden Case | Origin | China |
| Trademark | Ninestones | Production Capacity | 10000pieces/Year |
Applicable Strata
Covers a full range of geological rock formations with far better adaptability than conventional general-purpose cutters.Conventional soft, medium and hard formations: mudstone, shale, ordinary sandstone and limestone;Hard abrasive formations: tight sandstone, granite and quartzite;Complex special formations: soft-hard interbedded layers, gravel-bearing interlayers, fault fracture zones and easily collapsed broken formations.It can stably cope with all kinds of high-difficulty drilling conditions.
Core Product Advantages
Cost‑Effective & High Efficiency
Compact 13 mm size with balanced performance; lower cost than 1613/1916, ideal for medium formations and large‑volume projects.
Excellent Wear Resistance
Sintered at 6 GPa / 1500°C with dense diamond bonding; wear resistance 25%+ higher than standard cutters.
Good Impact Toughness
Tungsten carbide substrate with optimized interface; shear strength ≥ 3500 N, reduces chipping in interbedded strata.
High Thermal Stability
Deep cobalt‑leaching grade; heat resistance ≥750°C, stable performance in medium‑high temperature wells.
Reliable Self‑Sharpening
Optimized PCD microstructure; maintains sharp edge during wear, stable ROP and less bit balling.
Precise Dimensions & Easy Installation
Standard 1313 size: 13.44 × 13.0 mm, tolerance ±0.05 mm; fits most matrix/steel PDC bits, excellent interchangeability.
Precise Size Specifications
Standard 1313 specification: diameter 13.44 ± 0.05 mm, total height 13.00 ± 0.10 mm, diamond layer thickness 2.00 ± 0.10 mm, end chamfer 0.41 ± 0.05 mm. Custom diameters, heights, PCD thickness (1.8–2.2 mm) and flat/curved edges are available.
Material and Core Technology
Core Material
Adopts high-density premium cemented carbide substrate combined with high-purity PCD polycrystalline diamond material. The substrate features high hardness while the diamond layer delivers outstanding wear resistance, improving product durability fundamentally.
Production Process
Adopts industrial-grade high temperature and high pressure (HTHP) integrated sintering technology. The PCD diamond layer is seamlessly fused with the cemented carbide substrate with high bonding strength. It avoids delamination, falling off and tooth detachment during long-term high-pressure drilling, with process stability superior to products made by ordinary bonding technology.
Core Material
All production complies with ISO9001, ISO14001 and ISO45001 international system standards. Three-level inspection is carried out on raw materials, semi-finished products and finished products. All performance indicators including impact toughness, high temperature resistance and wear resistance reach stable standards. Factory direct supply ensures fully controllable quality.
Application Field
Oil & Gas Drilling
Suitable for shallow to medium-deep well operations on land. Works well in tight sandstone, interbedded strata and gravel-bearing formations. High temperature resistance avoids carbonization and delamination, reducing bit replacement and overall drilling cost.
Mining Drilling & Exploration
Ideal for mineral prospecting, tunnel drilling and mine water well projects. Perfect for high-abrasive hard rock such as granite and quartzite. Excellent impact resistance prevents edge chipping, serving longer life in fractured mining formations.
Geological Exploration & Sampling
High dimensional accuracy ensures stable drilling and regular borehole. Guarantees complete formation core sampling, fully meeting high-precision geological survey and resource exploration requirements.
Water Well & Infrastructure Engineering
Widely used in deep water wells, pile foundation drilling and construction projects. Efficient penetration in common rock layers, low wear and stable performance for long-time continuous site operation.
Universal Bit Matching
Compatible with mainstream PDC bits, core bits and drilling tools with good interchangeability. Custom sizes and chamfers are available to meet non-standard matching demands for different projects.
Customized Service
- Size customization: non‑standard diameter, height, PCD thickness (1.8–2.2 mm)
- Cutting edge: flat, arc, spherical, chamfer customization
- Interface: flat, corrugated or grid bonding surface
- Performance: general‑purpose, wear‑resistant or impact‑resistant grade
- Bulk orders: 1,000–20,000 pcs, delivery 15–30 days
| Cutter Model | Diameter/mm | Total Height/mm | Height of Diamond Layer | Chamfer of Diamond Layer |
| S0505 | 4.820 | 4.600 | 1.6 | 0.5 |
| S0605 | 6.381 | 5.000 | 1.8 | 0.5 |
| S0606 | 6.421 | 5.560 | 1.8 | 1.17 |
| S0806 | 8.009 | 5.940 | 1.8 | 1.17 |
| S0807 | 7.971 | 6.600 | 1.8 | 0.7 |
| S0808 | 8.000 | 8.000 | 1.80 | 0.30 |
| S1008 | 10.000 | 8.000 | 1.8 | 0.3 |
| S1009 | 9.639 | 8.600 | 1.8 | 0.7 |
| S1013 | 10.000 | 13.200 | 1.8 | 0.3 |
| S1108 | 11.050 | 8.000 | 2 | 0.64 |
| S1109 | 11.000 | 9.000 | 1.80 | 0.30 |
| S1111 | 11.480 | 11.000 | 2.00 | 0.25 |
| S1113 | 11.000 | 13.200 | 1.80 | 0.30 |
| S1308 | 13.440 | 8.000 | 2.00 | 0.40 |
| S1310 | 13.440 | 10.000 | 2.00 | 0.35 |
| S1313 | 13.440 | 13.200 | 2 | 0.4 |
| S1316 | 13.440 | 16.000 | 2 | 0.35 |
| S1608 | 15.880 | 8.000 | 2.1 | 0.4 |
| S1613 | 15.880 | 13.200 | 2.40 | 0.40 |
| S1616 | 15.880 | 16.000 | 2.00 | 0.40 |
| S1908 | 19.050 | 8.000 | 2.40 | 0.30 |
| S1913 | 19.050 | 13.200 | 2.40 | 0.30 |
| S1916 | 19.050 | 16.000 | 2.4 | 0.3 |
| S2208 | 22.220 | 8.000 | 2.00 | 0.30 |
| S2213 | 22.220 | 13.200 | 2.00 | 0.30 |
| S2216 | 22.220 | 16.000 | 2.00 | 0.40 |
| S2219 | 22.220 | 19.050 | 2.00 | 0.30 |
Customer Reviews
Mark Wilson | Oilfield Drilling Project Manager
We have been using their 16mm PDC cutters for a long time. They perform steadily in hard formations with much better wear resistance than other brands. Cutter chipping is greatly reduced, which effectively cuts down our overall drilling cost. Highly reliable for long-term cooperation.
Carlos Rodriguez | Mining Drilling Engineer
Our working conditions are tough with granite and fractured formations. These PDC cutters have excellent impact resistance and longer service life. The dimension accuracy is perfect, fits our drill bits very well without repeated adjustment.
David Brown | Infrastructure & Water Well Contractor
Great customization service for non-standard sizes and special chamfers. Delivery is always on time. The cutters hold up well under continuous high-intensity site operation, fast penetration and low consumption, fully matching our construction schedule.
Packaging
- Single: anti‑static plastic box with foam, individually sealed
- Bulk: hard carton with divided foam, 100/200 pcs per box
- Protection: anti‑rust oil + moisture‑proof bag for sea shipping
- Labeling: specification, batch No., production date, material certificate
Delivery
Sample and bulk orders are acceptable. We support express, air freight and sea freight. Sufficient production capacity ensures stable lead time, safe and on-time delivery worldwide.
FAQ
Q1: What’s the difference between 1313 and 1613
A: 1313: 13.44 mm diameter / 13 mm height, cost‑effective for medium formations. 1613: 16 mm diameter, thicker substrate, more for medium‑hard and abrasive formations.
Q2: Is 1313 suitable for directional drilling?
A: Yes. Compact size, good balance and anti‑vibration design make it excellent for directional and horizontal wells in medium formations.
Q3: Do you provide samples?
A: Free samples (1–3 pcs) available in 3–5 days. Bulk lead time 15–30 days, rush 7–10 days.
Q4: What is the warranty?
A: ISO9001 certified, 6‑month warranty under normal use. Non‑artificial issues: free replacement/refund and technical support.
Q5: Can you customize the diamond layer thickness?
A: Yes. Custom PCD thickness: 1.8 mm–2.2 mm for wear‑resistant or impact‑resistant requirements.
