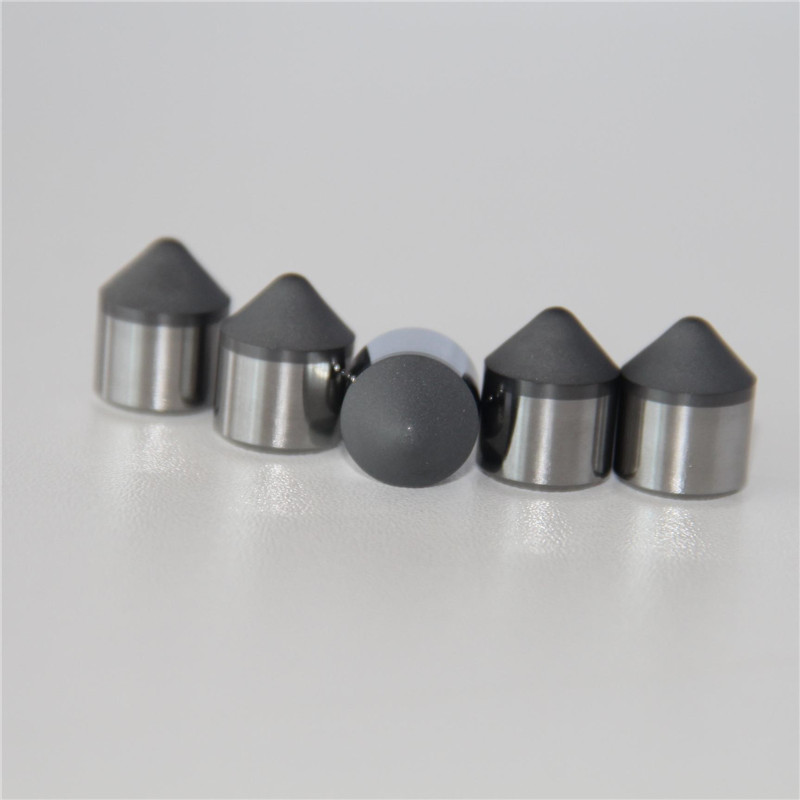

The C1316 PDC Cutter is a premium polycrystalline diamond compact cutter engineered for demanding drilling environments. Featuring a high-quality synthetic diamond layer bonded to a tungsten carbide substrate under ultra-high pressure and high-temperature conditions, the C1316 delivers exceptional wear resistance, impact toughness, and thermal stability. It is specifically designed to improve drilling efficiency, extend bit service life, and reduce operational costs in mining, geological exploration, water well drilling, and oil & gas applications.Play
Parameter Table
| Model NO. | C1316 | Length | Standard |
| Type | PDC Cutter/Insert/Button | Material | Tungsten Carbide |
| Usage | Well Drilling, Oilfield,Gas Field,Mining Industry,Construction | Wear Resistance | Super High |
| Thermal Stability | 750℃,800℃,850℃,900℃ | Production Process | Hthp Sintering |
| Diamond Grade | PCD | Substrate Material | Tungsten Carbide |
| Total Height | 5~34 | Tolerance | ±0.02mm |
| Impact Toughness | Excellent | Certification | ISO 9001 |
| Shape | Round | Matched Drill Bit | PDC Drill Bits, Core Bits, Tricone Bits, Drill Pipes (We also offer custom drill bit manufacturing) |
| MOQ | 100PCS | Specification | 1316 |
| Transport Package | Customized, Carton/Wooden Case | Origin | China |
| Trademark | Ninestones | Production Capacity | 10000pieces/Year |
Applicable Strata
The C1316 PDC cutter performs exceptionally well in:
- Soft to medium-hard formations
- Medium-hard abrasive formations
- Sandstone
- Limestone
- Shale
- Mudstone
- Dolomite
- Coal seams
- Interbedded formations
- Moderately fractured rock formations
Its balanced wear resistance and impact strength make it suitable for both conventional and challenging drilling conditions.
Core Product Advantages
Superior Compressive Strength
Manufactured with optimized diamond-table bonding technology, the C1316 withstands extreme downhole pressure and maintains structural integrity during high-load drilling operations.
Excellent Impact Resistance
The advanced interface design between the diamond layer and carbide substrate significantly improves resistance to impact damage and cutter chipping, especially in heterogeneous formations.
Outstanding Wear Resistance
The ultra-hard polycrystalline diamond surface provides exceptional abrasion resistance, resulting in longer cutter life and reduced bit replacement frequency.
High Thermal Stability
Engineered to perform under elevated drilling temperatures, the cutter maintains cutting efficiency and structural stability during prolonged drilling operations..
Enhanced Drilling Efficiency
Sharp cutting edges and optimized diamond grain distribution enable faster penetration rates and smoother drilling performance.
Extended Service Life
The combination of wear resistance, impact toughness, and thermal protection significantly extends operational lifespan, lowering total drilling costs.
Precise Size Specifications
The C1316 PDC cutter features a standard diameter of 13 mm and a total height of 16 mm. Precision manufacturing ensures dimensional consistency, allowing seamless integration into various PDC drill bit designs. Custom dimensions and chamfer configurations are also available to meet specific drilling requirements.
Material and Core Technology
High-Quality Diamond Layer
Manufactured using premium synthetic diamond powder, creating an ultra-hard cutting surface capable of maintaining sharpness in abrasive formations.
Advanced HPHT Sintering Technology
Produced under High Pressure High Temperature (HPHT) conditions to achieve a strong metallurgical bond between the diamond table and tungsten carbide substrate.
Optimized Interface Engineering
The proprietary interface structure effectively reduces residual stress, improving impact resistance, thermal stability, and overall durability.
Application Field
Oil & Gas Drilling
Suitable for shallow to medium-deep well operations on land. Works well in tight sandstone, interbedded strata and gravel-bearing formations. High temperature resistance avoids carbonization and delamination, reducing bit replacement and overall drilling cost.
Mining Drilling & Exploration
Ideal for mineral prospecting, tunnel drilling and mine water well projects. Perfect for high-abrasive hard rock such as granite and quartzite. Excellent impact resistance prevents edge chipping, serving longer life in fractured mining formations.
Geological Exploration & Sampling
High dimensional accuracy ensures stable drilling and regular borehole. Guarantees complete formation core sampling, fully meeting high-precision geological survey and resource exploration requirements.
Water Well & Infrastructure Engineering
Widely used in deep water wells, pile foundation drilling and construction projects. Efficient penetration in common rock layers, low wear and stable performance for long-time continuous site operation.
Universal Bit Matching
Compatible with mainstream PDC bits, core bits and drilling tools with good interchangeability. Custom sizes and chamfers are available to meet non-standard matching demands for different projects.
Customized Service
To meet diverse drilling requirements, we offer comprehensive OEM and ODM services:
- Custom cutter dimensions
- Customized chamfer designs
- Different diamond table thicknesses
- Enhanced wear-resistant grades
- Specialized impact-resistant formulations
- Laser marking and branding
- Tailored packaging solutions
Our engineering team can recommend the optimal cutter configuration based on your formation characteristics and drilling objectives.
| Cutter Model | Diameter/mm | Total Height/mm | SR Radius of Dome | H Exposed Height |
| C0606 | 6.421 | 6.350 | 2 | 2.4 |
| C0609 | 6.400 | 9.300 | 1.5 | 3.3 |
| C1114 | 11.176 | 13.716 | 1.5 | 5.5 |
| C1210 | 12.000 | 10.000 | 1.5 | 6.0 |
| C1214 | 12.000 | 14.500 | 2 | 6 |
| C1217 | 12.000 | 17.000 | 2.0 | 6.0 |
| C1218 | 12.000 | 18.000 | 2.0 | 6.0 |
| C1310 | 13.700 | 9.855 | 2.3 | 6.4 |
| C1313 | 13.440 | 13.200 | 2 | 6.5 |
| C1315 | 13.440 | 15.000 | 2.0 | 6.5 |
| C1316 | 13.440 | 16.500 | 2 | 6.5 |
| C1317 | 13.440 | 17.050 | 2 | 6.5 |
| C1318 | 13.440 | 18.000 | 2.0 | 6.5 |
| C1319 | 13.440 | 19.050 | 2.0 | 6.5 |
| C1420 | 14.300 | 20.000 | 2 | 6.5 |
| C1421 | 14.870 | 21.000 | 2.0 | 6.2 |
| C1621 | 15.880 | 21.000 | 2.0 | 7.9 |
| C1925 | 19.050 | 25.400 | 2.0 | 9.8 |
| C2525 | 25.400 | 25.400 | 2.0 | 10.9 |
| C3028 | 29.900 | 28.000 | 3 | 14.6 |
| C3129 | 30.500 | 28.500 | 3.0 | 14.6 |
Customer Reviews
Mark Wilson | Oilfield Drilling Project Manager
We have been using their 16mm PDC cutters for a long time. They perform steadily in hard formations with much better wear resistance than other brands. Cutter chipping is greatly reduced, which effectively cuts down our overall drilling cost. Highly reliable for long-term cooperation.
Carlos Rodriguez | Mining Drilling Engineer
Our working conditions are tough with granite and fractured formations. These PDC cutters have excellent impact resistance and longer service life. The dimension accuracy is perfect, fits our drill bits very well without repeated adjustment.
David Brown | Infrastructure & Water Well Contractor
Great customization service for non-standard sizes and special chamfers. Delivery is always on time. The cutters hold up well under continuous high-intensity site operation, fast penetration and low consumption, fully matching our construction schedule.
Packaging
To ensure safe international transportation, C1316 PDC cutters are carefully packaged using:
- Individual protective trays
- Shock-resistant foam protection
- Sealed plastic packaging
- Export-grade carton boxes
- Wooden cases available for bulk orders
Customized packaging and private labeling services are available upon request.
Delivery
Sample and bulk orders are acceptable. We support express, air freight and sea freight. Sufficient production capacity ensures stable lead time, safe and on-time delivery worldwide.
FAQ
Q: What formations is the C1316 PDC cutter suitable for?
A: It is ideal for soft, medium-hard, and moderately abrasive formations such as sandstone, shale, limestone, mudstone, and coal seams.
Q: What material is used in the C1316 cutter?
A: The cutter consists of a premium polycrystalline diamond layer bonded to a tungsten carbide substrate through advanced HPHT technology.
Q: Can you provide customized sizes?
A: Yes. We offer customized diameters, heights, chamfer angles, and diamond table thicknesses according to customer requirements.
Q: What are the main advantages of C1316 compared with conventional cutters?
A: Higher wear resistance, stronger impact toughness, improved thermal stability, faster drilling speed, and longer service life.
