PDC CUTTERS TESTING & QUALITY ASSURANCE
Complete Enterprise Standards & Rigorous Multi-Dimensional Testing

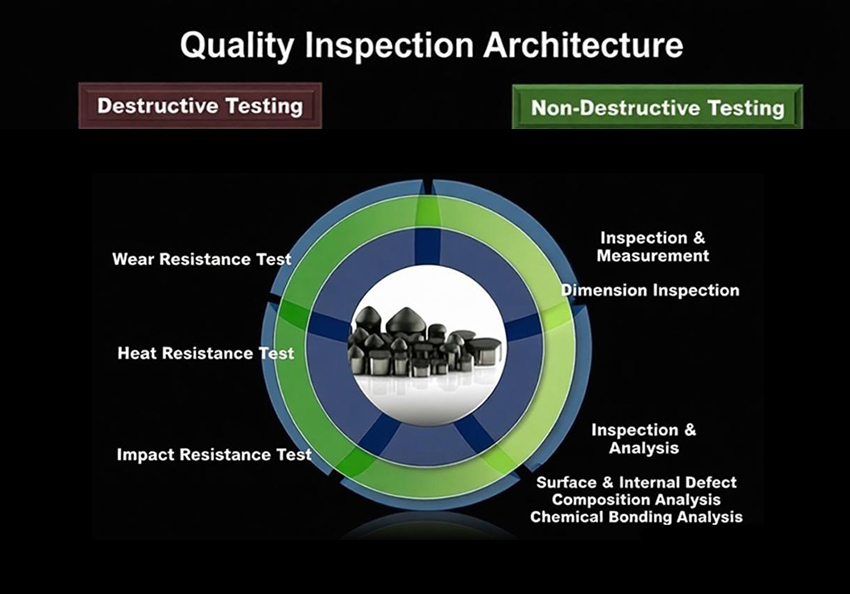

Quality Inspection Architecture
Complete Enterprise Standards & Rigorous Multi-Dimensional Testing

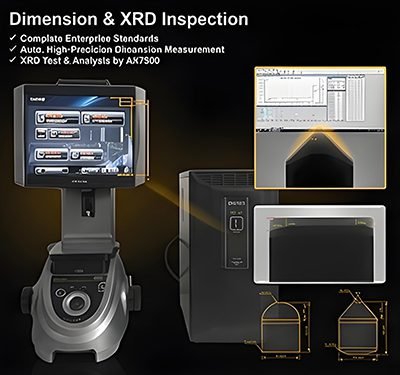

Dimension & XRD Inspection
Non-Destructive- Enterprise Standards: Strict adherence to dimensional accuracy.
- Auto High-Precision Measurement: Measured via KEYENCE IM-6025.
- XRD Structural Analysis: Phase analysis and stress measurement by AX7900.
Physicochemical & Microscopic
Non-Destructive- Micro-morphology Analysis: Surface composition SEM by ZEISS EVO LS10.
- Internal Defect & Structure: Acoustic microscopy (C-Scan) by Hiwave S600G.

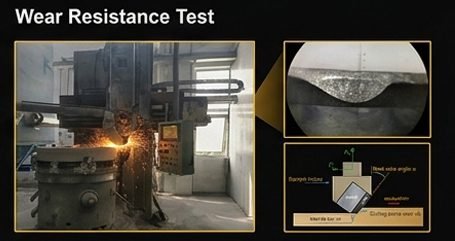

Wear Resistance Test (VTL)
Destructive- Heavy Load Wear Test: Tested under both Dry & Wet Vertical Turret Lathe (VTL) environments.
- Simulates rock cutting behavior to evaluate cutting edge wear area (Af).

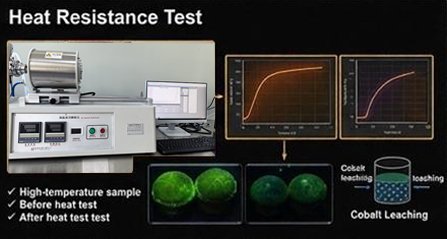

Heat Resistance Test
Destructive- High Temperature Vacuum Test: High-temp furnace baking to analyze thermal degradation.
- Evaluates thermal crack resistance and cobalt leaching stability under extreme drilling heat.

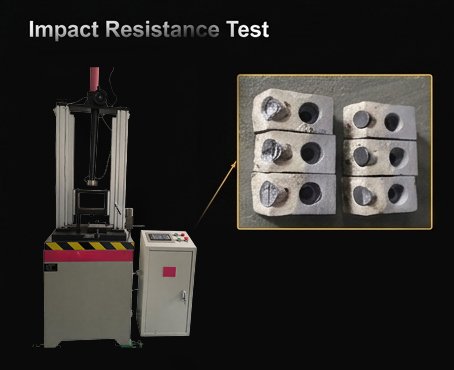

Impact Resistance Test
Destructive- Evaluation of dynamic impact toughness under heavy mechanical shocks.
- Drop-weight impact and high-temperature brazing stability testing.

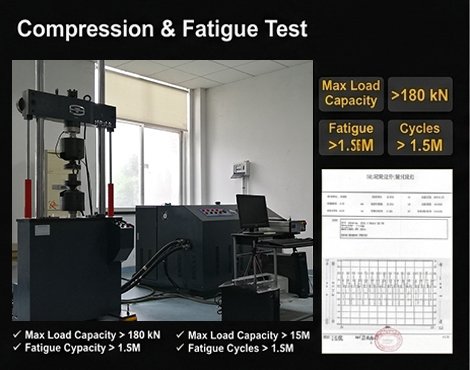

Compression & Fatigue Test
Destructive- Ultimate Compression: Maximum load capacity testing.
- Fatigue Compression: High-frequency cyclic endurance verification under heavy load.
Max Load Capacity
> 180 kN (eg. 200 kN)
Fatigue Cycles
> 1.5M (~20 hours)
Drill Deeper. Last Longer.
