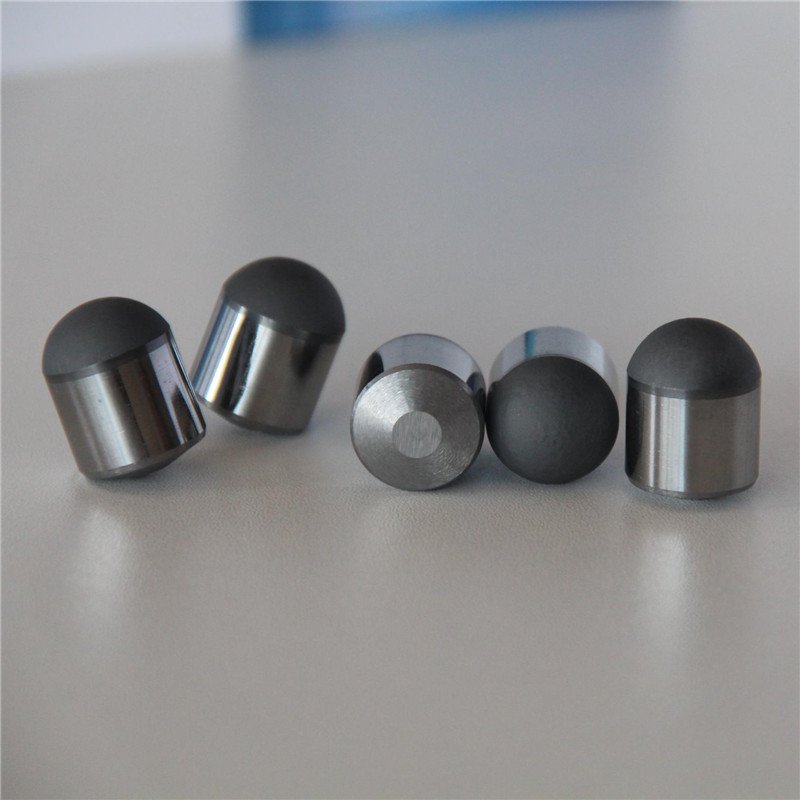

DB1824 Diamond Spherical Compound Teeth is a high-performance diamond enhanced compact (DEC) product specifically developed for mining, foundation engineering, and rock drilling applications. It consists of a premium polycrystalline diamond layer and a high-strength tungsten carbide substrate, featuring a hemispherical diamond working surface and cylindrical base structure. This design effectively disperses impact loads while maximizing contact area with the formation, delivering outstanding impact resistance, wear resistance, and crushing efficiency.Play
Parameter Table
| Model NO. | DB1824 | Length | Standard |
| Type | PDC Cutter/Insert/Button | Material | Tungsten Carbide |
| Usage | Well Drilling, Oilfield,Gas Field,Mining Industry,Construction | Wear Resistance | Super High |
| Thermal Stability | 750℃,800℃,850℃,900℃ | Production Process | Hthp Sintering |
| Diamond Grade | PCD | Substrate Material | Tungsten Carbide |
| Total Height | 5~34 | Tolerance | ±0.02mm |
| Impact Toughness | Excellent | Certification | ISO 9001 |
| Shape | Round | Matched Drill Bit | PDC Drill Bits, Core Bits, Tricone Bits, Drill Pipes (We also offer custom drill bit manufacturing) |
| MOQ | 100PCS | Specification | 1824 |
| Transport Package | Customized, Carton/Wooden Case | Origin | China |
| Trademark | Ninestones | Production Capacity | 10000pieces/Year |
Applicable Strata
DB1824 is engineered to perform efficiently in:
- Medium-hard to hard rock formations
- Abrasive sandstone
- Limestone formations
- Granite and basalt formations
- Coal mining environments
- Quarrying and tunneling projects
- Foundation and geothermal drilling applications
Its spherical profile provides superior load distribution, making it especially effective in highly fractured and impact-intensive formations.
Core Product Advantages
Exceptional Compressive Strength
The reinforced carbide substrate and optimized diamond layer enable DB1824 to withstand extremely high compressive loads encountered during aggressive drilling operations.
Superior Impact Resistance
The hemispherical geometry disperses concentrated impact forces across a larger area, significantly reducing localized stress and minimizing cutter failure.
Outstanding Wear Resistance
The high-quality polycrystalline diamond layer delivers excellent abrasion resistance, ensuring long service life even in highly abrasive formations.
Excellent High-Temperature Stability
Advanced sintering technology provides stable performance under elevated drilling temperatures, reducing thermal degradation during extended operations.
Enhanced Drilling Efficiency
The dome-shaped cutting structure promotes efficient rock crushing and energy transfer, improving penetration rates while reducing operational costs.
Extended Bit Service Life
By combining impact resistance and wear resistance, DB1824 helps extend the overall lifespan of drilling tools, reducing downtime and replacement frequency.
Precise Size Specifications
DB1824 is manufactured with a diameter of 18.0 mm and an overall height of 24.0 mm. The spherical dome features a radius of 9.24 mm and an exposed working height of 7.1 mm, providing an ideal balance between penetration capability, impact absorption, and wear life. This dimensional configuration makes DB1824 suitable for heavy-duty mining bits, roller cone bits, DTH hammers, and specialized drilling tools.
Material and Core Technology
Premium Polycrystalline Diamond Layer
Manufactured using carefully selected diamond powders under ultra-high pressure and high-temperature conditions to ensure superior hardness and wear resistance.
High-Strength Tungsten Carbide Substrate
The carbide base offers excellent toughness and support, allowing the composite tooth to withstand severe impact loads during drilling.
Advanced HPHT Sintering Technology
Utilizing sophisticated high-pressure, high-temperature sintering processes to achieve strong diamond-carbide bonding, enhancing reliability and service life under extreme working conditions.
Application Field
Oil & Gas Drilling
Suitable for shallow to medium-deep well operations on land. Works well in tight sandstone, interbedded strata and gravel-bearing formations. High temperature resistance avoids carbonization and delamination, reducing bit replacement and overall drilling cost.
Mining Drilling & Exploration
Ideal for mineral prospecting, tunnel drilling and mine water well projects. Perfect for high-abrasive hard rock such as granite and quartzite. Excellent impact resistance prevents edge chipping, serving longer life in fractured mining formations.
Geological Exploration & Sampling
High dimensional accuracy ensures stable drilling and regular borehole. Guarantees complete formation core sampling, fully meeting high-precision geological survey and resource exploration requirements.
Water Well & Infrastructure Engineering
Widely used in deep water wells, pile foundation drilling and construction projects. Efficient penetration in common rock layers, low wear and stable performance for long-time continuous site operation.
Universal Bit Matching
Compatible with mainstream PDC bits, core bits and drilling tools with good interchangeability. Custom sizes and chamfers are available to meet non-standard matching demands for different projects.
Customized Service
At Ninestones Superabrasives, we understand that every drilling application has unique requirements. We offer:
- Customized dimensions and tolerances
- Diamond layer thickness optimization
- Special substrate configurations
- Application-specific performance enhancement
- OEM & ODM manufacturing
- Bulk production and private labeling services
Our engineering team works closely with customers to develop solutions tailored to specific formations and drilling challenges.
| Cutter Model | Diameter/mm | Total Height/mm | SR Radius of Dome | H Exposed Height |
| DB0606 | 6.421 | 6.350 | 3.58 | 2 |
| DB0808 | 8.000 | 8.000 | 4.3 | 2.8 |
| DB0810 | 7.978 | 9.690 | 4.3 | 2.7 |
| DB1010 | 9.596 | 10.310 | 5.7 | 2.6 |
| DB1111 | 11.184 | 11.130 | 5.7 | 4.6 |
| DB1215 | 12.350 | 14.550 | 6.8 | 3.9 |
| DB1305 | 13.440 | 5.000 | 20.0 | 1.2 |
| DB1308 | 13.440 | 8.000 | 20 | 1.2 |
| DB1308V | 13.440 | 8.000 | 20.0 | 1.2 |
| DB1312 | 13.440 | 12.000 | 20 | 1.2 |
| DB1315 | 12.845 | 14.700 | 6.7 | 4.8 |
| DB1318 | 13.440 | 18.000 | 20.0 | 1.2 |
| DB1318 | 13.440 | 17.600 | 7.2 | 4.6 |
| DB1421 | 14.000 | 21.000 | 7.2 | 5.5 |
| DB1619 | 15.880 | 21.000 | 8.3 | 5.9 |
| DB1623 | 16.000 | 23.000 | 8.25 | 6.2 |
| DB1824 | 18.000 | 24.000 | 9.24 | 7.1 |
| DB1924 | 19.050 | 24.200 | 9.7 | 7.8 |
| DB2226 | 22.276 | 26.000 | 11.4 | 9.0 |
Customer Reviews
Mark Wilson | Oilfield Drilling Project Manager
We have been using their 16mm PDC cutters for a long time. They perform steadily in hard formations with much better wear resistance than other brands. Cutter chipping is greatly reduced, which effectively cuts down our overall drilling cost. Highly reliable for long-term cooperation.
Carlos Rodriguez | Mining Drilling Engineer
Our working conditions are tough with granite and fractured formations. These PDC cutters have excellent impact resistance and longer service life. The dimension accuracy is perfect, fits our drill bits very well without repeated adjustment.
David Brown | Infrastructure & Water Well Contractor
Great customization service for non-standard sizes and special chamfers. Delivery is always on time. The cutters hold up well under continuous high-intensity site operation, fast penetration and low consumption, fully matching our construction schedule.
Packaging
To ensure safe international transportation, DB1824 products are packed using:
- Individual protective compartments
- Anti-collision foam protection
- Moisture-resistant packaging
- Heavy-duty export cartons
- Customized packaging available upon request
Every shipment undergoes strict quality inspection before dispatch.
Delivery
Sample and bulk orders are acceptable. We support express, air freight and sea freight. Sufficient production capacity ensures stable lead time, safe and on-time delivery worldwide.
FAQ
Q: What is the primary advantage of the spherical design?
A: The spherical geometry distributes impact forces more evenly, improving impact resistance and reducing localized stress concentrations during drilling.
Q:Can DB1824 be used in hard rock formations?
A: Yes. DB1824 is specifically designed for medium-hard to hard formations and performs exceptionally well in abrasive and impact-intensive environments.
Q: Is customization available?
A: Absolutely. We provide OEM and ODM services, including custom dimensions, diamond layer configurations, and application-specific designs.
Q: What drilling tools commonly use DB1824?
A: DB1824 is widely used in roller cone bits, DTH hammer bits, mining drilling tools, and specialized PDC drilling systems.
Q: How does DB1824 help reduce drilling costs?
A: Its superior wear resistance and impact resistance extend tool life, reduce replacement frequency, and improve overall drilling efficiency.
