C3129 Conical diamond enhanced compact
Pyramid PDC Insert has sharper and lasting edge than Conical PDC Insert. This structure is conducive to eating into harder rock, promoting the rapid discharge of rock debris, reducing the forward resistance of PDC Insert, improving the rock breaking efficiency with less torque, keeping the bit stable when drilling. lt is mainly used for manufacturing oil and mining bits.
CB1319 Dome- Conical DEC (diamond enhanced compact)
The company produces non-planar composite sheets with different shapes and specifications such as wedge type, triangular cone type (pyramid type), truncated cone type, triangular Mercedes-Benz type, flat arc structure, etc. The core technology of polycrystalline diamond composite sheet is adopted, and the surface structure is pressed and formed, which has a sharper cutting edge and better economy. It has been widely used in drilling and mining fields such as diamond bits, roller cone bits, mining bits, and crushing machinery. At the same time, it is especially suitable for specific functional parts of PDC drill bits, such as main/auxiliary teeth, main gauge teeth, and second row teeth.
MR1613A6 Diamond Ridge Tooth
The company can now produce non-planar composite sheets with different shapes and specifications such as wedge type, triangular cone type (pyramid type), truncated cone type, triangular Mercedes-Benz type, and flat arc structure. The core technology of polycrystalline diamond composite sheet is adopted, and the surface structure is pressed and formed, which has a sharper cutting edge and better economy. It has been widely used in drilling and mining fields such as diamond bits, roller cone bits, mining bits, and crushing machinery. At the same time, it is especially suitable for specific functional parts of PDC drill bits, such as main/auxiliary teeth, main gauge teeth, second row teeth, etc., and is widely praised by domestic and foreign markets.
Diamond ridge teeth. Non-planar diamond composite sheet for oil and gas drilling, a special shape, forms the best cutting point to obtain the best rock drilling effect; it is conducive to eating into the formation, and has higher mud bag resistance.
MT1613A diamond three-blade composite sheet
The company can now produce non-planar composite sheets of different shapes and specifications such as wedge type, triangular cone type (pyramid type), truncated cone type, three-edged Mercedes-Benz type, and flat arc type structure. Diamond three-blade composite sheet, this type of composite sheet has high rock-breaking efficiency, low cutting resistance, directional chip removal, and has higher impact resistance and mud bag resistance than flat composite sheets. The cutting bottom line is conducive to eating into the formation, and the cutting efficiency is higher than that of the flat tooth, and the service life is longer. Diamond diamond three-edged composite sheet is widely used in the field of oil and gas exploration, we can meet customer customization, and provide drawing processing for customers.
S1313HS15 Diamond composite sheet for oil and gas drilling
Our company specializes in manufacturing diamond composite materials for oil and gas drilling and mining projects.
Diamond composite sheet: diameter 05mm, 08mm, 13mm, 16mm, 19mm, 22mm, etc.
Diamond composite teeth: ball, bevel, wedge, bullet, etc.
Special-shaped diamond composite sheet: cone teeth, double chamfers, ridge teeth, triangular teeth, etc.
Diamond composite sheet for oil and gas drilling: Excellent impact resistance, low stress ring tooth design, diamond double-layer chamfering design, with the characteristics of high wear resistance and impact resistance.
CP1419 Diamond Triangular Pyramid Composite Sheet
A triangular-toothed diamond composite tooth, the polycrystalline diamond layer has three slopes, the center of the top is a conical surface, the polycrystalline diamond layer has multiple cutting edges, and the side cutting edges are smoothly connected at intervals. Compared with the conventional cone, the pyramid structure Shaped composite teeth have a sharper and more durable cutting edge, which is more conducive to eating into the rock formation, reducing the resistance of the cutting teeth to advance, and improving the rock-breaking efficiency of the diamond composite sheet.
C1420 conical Diamond composite teeth
As the earliest developer of diamond composite teeth in China, the performance of the company’s diamond composite teeth is ahead of domestic counterparts. The impact energy of the drop hammer has reached 150J*1000 times, the number of fatigue impacts has reached more than 1 million times, and the overall life span has reached 4 times that of similar domestic products. -5 times.
CB1319 Diamond Bullet Compound Teeth
The company mainly produces two categories of products: polycrystalline diamond composite sheets and diamond composite teeth. The products are mainly used in oil and gas drill bits and drilling tools for mine geological engineering.
Diamond bullet-shaped composite teeth: The shape is pointed at the top and thick at the bottom, which has strong damage to the ground. Compared with drilling through grinding alone, the speed is greatly improved. The tip adopts giant crystal diamond, which can improve the wear resistance and maintain the edge of sharpness.

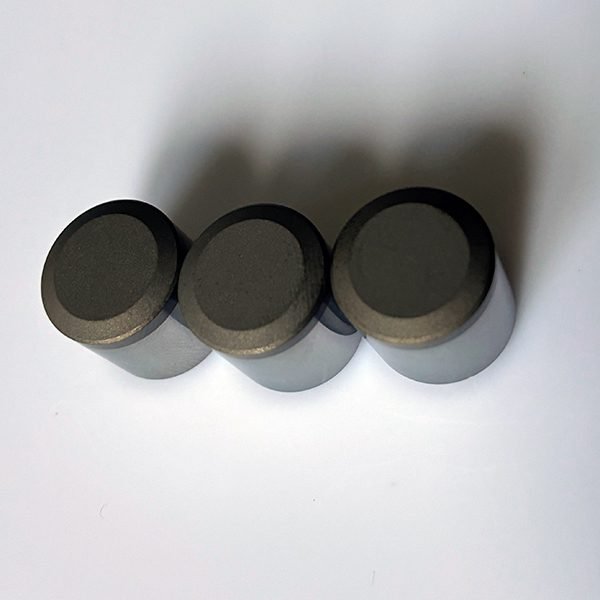

SP1913 Oil and gas drilling planar diamond composite sheet
According to different diameters, PDC is divided into main size series such as 19mm, 16mm, 13mm, etc., and auxiliary size series such as 10mm, 8mm, and 6mm. Generally, large-diameter PDCs require good impact resistance and are used in soft formations to achieve high ROP; small-diameter PDCs require strong wear resistance and are used in relatively hard formations to ensure service life.
We can accept customer customization or drawing processing.
Flat PDC Cutter for High‑Performance Drilling and Mining Tools
This 16mm high-performance PDC cutter is custom-developed for harsh working conditions such as deep wells, hard rock and fractured formations. Compared with conventional cutters, it delivers higher rock-breaking efficiency, superior impact resistance and ultra-high wear resistance.It is fully applicable to oil and gas fields, mining exploitation, geological exploration, engineering water well drilling and other scenarios, effectively improving drilling footage, reducing bit replacement frequency and greatly lowering overall drilling construction costs.
