DH1216 Diamond truncated composite sheet
A double-layer frustum-shaped diamond composite sheet adopts the inner and outer double-layer structure of the frustum and the cone ring, which reduces the contact area with the rock at the beginning of cutting, and the frustum and the cone ring increase the impact resistance. The contact lateral area is small, which improves the sharpness of rock cutting. The best contact point can be formed during drilling, so as to achieve the best use effect and greatly improve the service life of the drill bit.
DW1214 diamond wedge composite teeth
The company can now produce non-planar composite sheets with different shapes and specifications such as wedge type, triangular cone type (pyramid type), truncated cone type, triangular Mercedes-Benz type, and flat arc structure. The core technology of polycrystalline diamond composite sheet is adopted, and the surface structure is pressed and formed, which has a sharper cutting edge and better economy. It has been widely used in drilling and mining fields such as diamond bits, roller cone bits, mining bits, and crushing machinery. At the same time, it is especially suitable for specific functional parts of PDC drill bits, such as main/auxiliary teeth, main gauge teeth, second row teeth, etc., and is widely praised by domestic and foreign markets.
DW1214 diamond wedge enhanced compact
The company can now produce non-planar composite sheets of different shapes and specifications such as wedge type, triangular cone type (pyramid type), truncated cone type, three-edged Mercedes-Benz type, and flat arc type structure.wedge-shaped diamond composite teeth are stronger in impact resistance and toughness than flat composite teeth, and have sharper cutting edges and lateral impact resistance compared with tapered composite teeth. During the drilling process of the diamond bit, the wedge-shaped diamond composite tooth changes the working mechanism of the planar diamond composite sheet from “scraping” to “plowing”. Cutting teeth advance resistance, and reduce the cutting vibration of the drill bit.

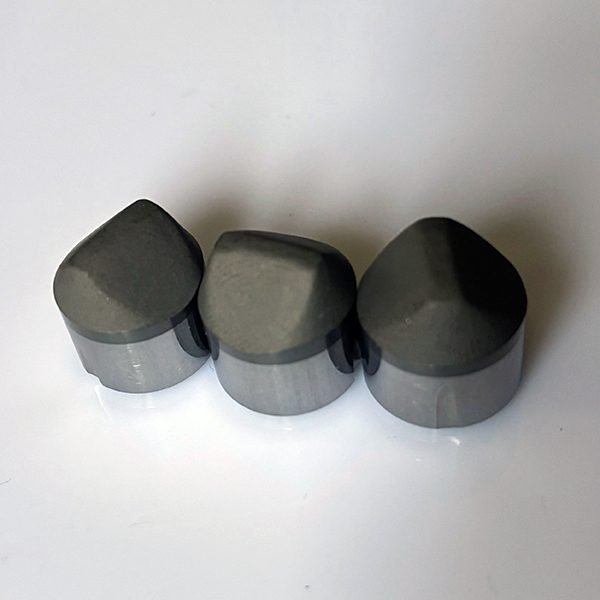

MT1613 diamond triangular (Benz type) composite sheet
triangular tooth polycrystalline diamond composite sheet, the material is cemented carbide substrate and polycrystalline diamond composite layer, the upper surface of the polycrystalline diamond composite layer is three convex with a high center and a low periphery. There is a chip removal concave surface between the two convex ribs, and the three convex ribs are upward triangular-shaped convex ribs in the cross section; so that the structural design of the drill tooth composite layer can greatly improve the impact toughness without reducing the impact resistance. Reduce the cutting area of the composite sheet and improve the drilling efficiency of the drill teeth.
The company can now produce non-planar composite sheets with different shapes and specifications such as wedge type, triangular cone type (pyramid type), truncated cone type, triangular Mercedes-Benz type, and flat arc structure.
C1621 conical Diamond composite teeth
The company mainly produces two types of products: polycrystalline diamond composite sheet and diamond composite tooth. The products are mainly used in oil and gas drill bits and mining geological engineering drilling tools.
Diamond tapered composite teeth have extremely high wear resistance and impact resistance, and are highly destructive to rock formations. On PDC drill bits, they can play an auxiliary role in fracturing formations, and can also improve the stability of drill bits.
S1008 polycrystalline diamond composite sheet
The PDC produced by our company is mainly used as cutting teeth for oil drilling bits, and is used in oil and gas exploration and drilling and other fields.PDC is divided into main size series such as 19mm, 16mm, and 13mm according to different diameters, and auxiliary size series such as 10mm, 8mm, and 6mm.
We can customize the size you need, provide you with technical support, and provide you with solutions.
S1313 drilling diamond composite sheet
Our factory mainly produces two types of products: polycrystalline diamond composite sheet and diamond composite tooth. PDC is divided into different series according to the requirements of wear resistance, impact resistance and heat resistance. So we can recommend different series of products in different application environments. We also provide technical support to provide you with solutions.
MR1613A6 Diamond Ridge Tooth
The company can now produce non-planar composite sheets with different shapes and specifications such as wedge type, triangular cone type (pyramid type), truncated cone type, triangular Mercedes-Benz type, and flat arc structure. The core technology of polycrystalline diamond composite sheet is adopted, and the surface structure is pressed and formed, which has a sharper cutting edge and better economy. It has been widely used in drilling and mining fields such as diamond bits, roller cone bits, mining bits, and crushing machinery. At the same time, it is especially suitable for specific functional parts of PDC drill bits, such as main/auxiliary teeth, main gauge teeth, second row teeth, etc., and is widely praised by domestic and foreign markets.
Diamond ridge teeth. Non-planar diamond composite sheet for oil and gas drilling, a special shape, forms the best cutting point to obtain the best rock drilling effect; it is conducive to eating into the formation, and has higher mud bag resistance.
MT1613A diamond three-blade composite sheet
The company can now produce non-planar composite sheets of different shapes and specifications such as wedge type, triangular cone type (pyramid type), truncated cone type, three-edged Mercedes-Benz type, and flat arc type structure. Diamond three-blade composite sheet, this type of composite sheet has high rock-breaking efficiency, low cutting resistance, directional chip removal, and has higher impact resistance and mud bag resistance than flat composite sheets. The cutting bottom line is conducive to eating into the formation, and the cutting efficiency is higher than that of the flat tooth, and the service life is longer. Diamond diamond three-edged composite sheet is widely used in the field of oil and gas exploration, we can meet customer customization, and provide drawing processing for customers.
S1313HS15 Diamond composite sheet for oil and gas drilling
Our company specializes in manufacturing diamond composite materials for oil and gas drilling and mining projects.
Diamond composite sheet: diameter 05mm, 08mm, 13mm, 16mm, 19mm, 22mm, etc.
Diamond composite teeth: ball, bevel, wedge, bullet, etc.
Special-shaped diamond composite sheet: cone teeth, double chamfers, ridge teeth, triangular teeth, etc.
Diamond composite sheet for oil and gas drilling: Excellent impact resistance, low stress ring tooth design, diamond double-layer chamfering design, with the characteristics of high wear resistance and impact resistance.
